| TYPE | Metric System Specifications | Inch Specifications | I.D | W.D | O.D | Max.W.P | P.P | Min.B.P | Min.B.R | W.T | |||
| SIZE | SIZE | Min | Max | Min | Max | Min | Max | ||||||
| MM | IN | in | mm | mm | mm | mm | mm | Mpa | Mpa | Mpa | mm | kg/m | |
| R11-03 | 5 | 3/16 | 4.6 | 5.4 | 17.5 | 19.1 | 21.4 | 23 | 87 | 174 | 348 | 100 | 1.15 |
| R11-04 | 6.3 | 1/4 | 6.2 | 7 | 19.1 | 20.6 | 23 | 24.6 | 78 | 156 | 312 | 125 | 1.20 |
| R11-06 | 10 | 3/8 | 9.3 | 10.1 | 22.2 | 23.8 | 26.2 | 27.8 | 70 | 140 | 280 | 150 | 1.40 |
| R11-08 | 12.5 | 1/2 | 12.5 | 13.7 | 26.2 | 27.8 | 30.2 | 31.8 | 52.5 | 105 | 210 | 200 | 1.74 |
| R11-12 | 19 | 3/4 | 19 | 20.2 | 34.1 | 35.7 | 38.9 | 40.5 | 43.5 | 87 | 174 | 280 | 2.23 |
| R11-16 | 25 | 1 | 25.4 | 27 | 41.7 | 44 | 47.2 | 49.6 | 35 | 70 | 140 | 360 | 3.18 |
| R11-20 | 31.5 | 1-1/4 | 31.8 | 33.4 | 48 | 50.4 | 53.2 | 56.4 | 24.5 | 49 | 98 | 460 | 3.80 |
| R11-24 | 38 | 1-1/2 | 38.1 | 39.7 | 54.4 | 56.7 | 59.5 | 62.7 | 21 | 42 | 84 | 560 | 4.39 |
| R11-32 | 51 | 2 | 50.8 | 52.6 | 68.6 | 71 | 73.8 | 77 | 21 | 42 | 84 | 710 | 5.98 |
| R11-40 | 63 | 2-1/2 | 63.5 | 63.5 | 83.5 | 86.3 | 89.7 | 92.9 | 17.5 | 35 | 70 | 920 | 7.40 |

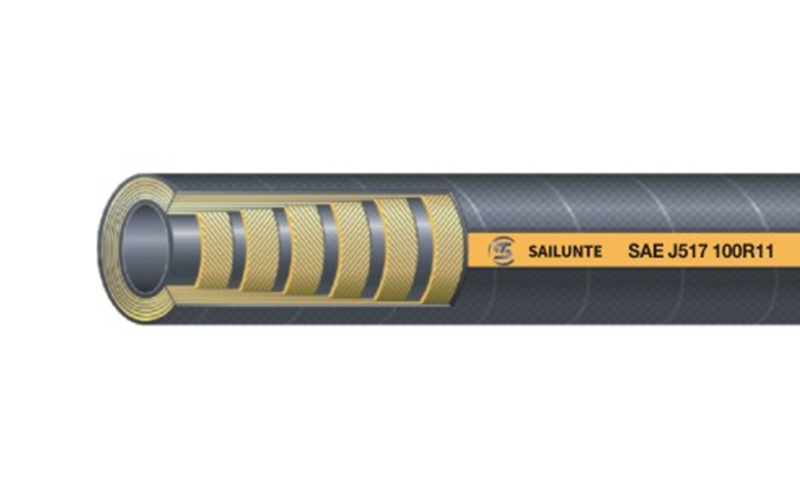

Heavy-duty six-layer steel wire-wound rubber hose
Application:This section covers hose for use with petroleum-based hydraulic fluids within a temperature range of –40 °C to +100 °C.
Feature:The hose consists of an oil- and heat-resistant synthetic rubber inner tube, six spiral plies of high-tensile steel wire reinforcement, and a weather-resistant synthetic rubber cover. Manufactured in accordance with SAE J517 100R11 and GB/T 10544-2013.
