| RS-P-W-50 Technical Parameters And Characteristics | ||||
| Body Material | Carbon Steel. Plate thickness ≥ 2.5mm | |||
| Hopper Material | Stainless Steel 304 Contact parts or Customized | |||
| Gross Weight | 750KG | |||
| Packing Capacity | 180-300 BAGS / H | |||
| Quantify Precision | 5-50kg or Customized | |||
| L×B×H(mm) | 2400*1000*2260 | |||
| CBM（m³） | 3m³ (For reference ) | |||
| Power | 2kw | |||
| Power Supply | AC 220V/380V 50 HZ or Customized | |||
| Air Source | 0.4~0.8MPa 0.36m³/min 3KW air compressor （Optional） | |||
| Packaging accurary | ± 0.2% F.S | |||
| Relative temperature | -10~40℃（ 14-104℉） | |||
| Packaging bag | Paper Bag, Woven Bag,Kraft Paper Bag,Nylon Bag, Aluminum Foil Bag, Plastic Bag | |||
| Sealing method | Sewing: Paper bag, woven bag,Craft Paper,Nylon Bag | |||
| Application Material |

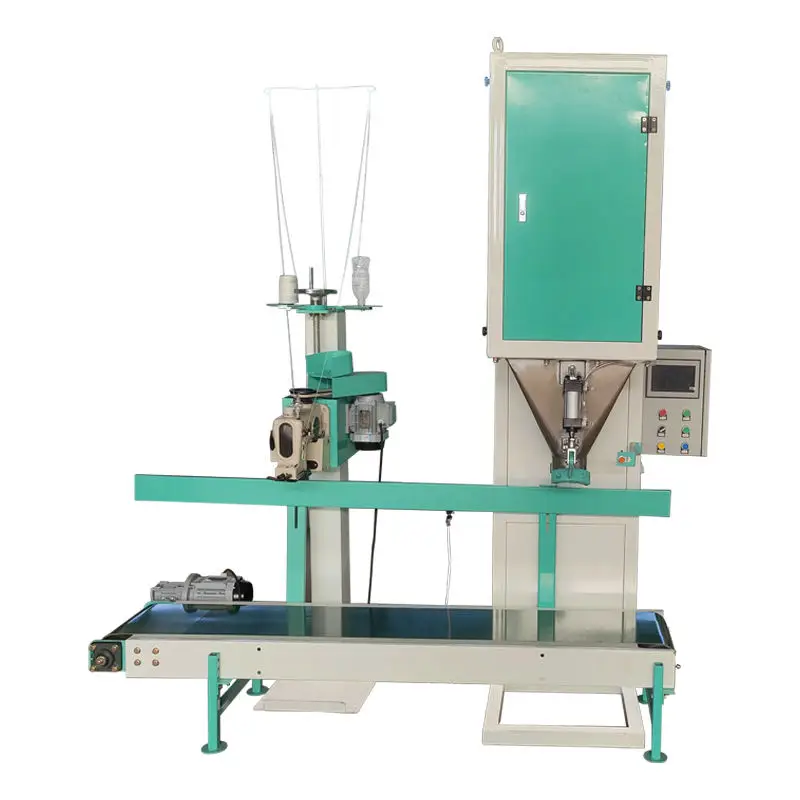

The RS-P-W-50 quantitative packaging Machine is a pre designed program and method for measuring bulk granular and powdery materials A weighing control system that automatically divides materials into small loads of predetermined weight. Within a certain range of limits, Pre packaged with uniform quality, volume, and length. Mainly used for Food industry: Rice、Potatoes、Dates、Walnuts、 meat floss, freeze-dried beans, chili peppers, dates, walnuts, longan, etc Chemical industry: ferrous sulfate, ammonium sulfate, sodium sulfite, disodium hydrogen phosphate, etc Fertilizer industry: rice specific fertilizer,cultivation specific soil, sheep manure, apple specific organic fertilizer,water-soluble organic fertilizer, succulent soil,plant ash, humus soil, microbial fertilizer, earthworm manure, horticultural fertilizer, cow manure fertilizer, seaweed fertilizer, powdered organic fertilizer, fermented chicken manure, fermented soybean meal, vegetable cultivation organic soil,sweet potato fertilizer, peat nutrient soil, distiller’s grains, Kitchen waste fertilizer etc. |
|||
| Functional Features |
The RS-P-W-50 quantitative packaging Machine adopts automatic control for fast and slow feeding, quantitative feeding, bag clamping, and unloading, except for the working bag. Set control parameters such as fast and slow feeding rates and display overload alarms on the instrument; Weight accumulation and configurable automatic printing output. This device also has the characteristics of fast packaging speed, high packaging accuracy, good stability, and easy operation. 1. Adopting gravity feeding method, controlled by instruments to ensure feeding speed and accuracy 2. Adopting high-precision sensors and highly intelligent weighing controllers, with high measurement accuracy and stable performance 3. The parts in contact with the material are controlled by stainless steel, which has high corrosion resistance 4. electrical components and pneumatic parts are all imported, with long service life and stable performance 5. Automatic correction of material deviation, zero point automatic tracking, overshoot detection and suppression, over and under quantity alarm. |
|||
