| TYPE | Metric System Specifications | Inch Specifications | Hose inner diameter I.D | Outer diameter of reinforcement layer W.D | Outside diameter of hose Thickness of outer rubber layer | Max.W.P | P.P | Min.B.P | Min.B.R | W.T | ||||
| SIZE | SIZE | Min | Max | Min | Max | Max | Min | Max | ||||||
| MM | IN | in | mm | mm | mm | mm | mm | mm | Mpa | Mpa | Mpa | mm | kg/m | |
| 03-1SN | 5 | 3/16 | 4.6 | 5.4 | 9.0 | 10.0 | 12.5 | 0.8 | 1.5 | 25.0 | 50.0 | 100.0 | 90 | 0.20 |
| 04-1SN | 6 | 1/4 | 6.2 | 7.0 | 10.6 | 11.6 | 14.1 | 0.8 | 1.5 | 22.5 | 45.0 | 90.0 | 100 | 0.25 |
| 05-1SN | 8 | 5/16 | 7.7 | 8.5 | 12.1 | 13.3 | 15.7 | 0.8 | 1.5 | 21.5 | 43.0 | 85.0 | 115 | 0.31 |
| 06-1SN | 10 | 3/8 | 9.3 | 10.1 | 14.5 | 15.7 | 18.1 | 0.8 | 1.5 | 18.0 | 36.0 | 72.0 | 130 | 0.36 |
| 08-1SN | 12.5 | 1/2 | 12.3 | 13.5 | 17.5 | 19.0 | 21.4 | 0.8 | 1.5 | 16.0 | 32.0 | 64.0 | 180 | 0.45 |
| 10-1SN | 16 | 5/8 | 15.5 | 16.7 | 20.6 | 22.2 | 24.5 | 0.8 | 1.5 | 13.0 | 26.0 | 52.0 | 200 | 0.52 |
| 12-1SN | 19 | 3/4 | 18.6 | 19.8 | 24.6 | 26.2 | 28.5 | 0.8 | 1.5 | 10.5 | 21.0 | 42.0 | 240 | 0.65 |
| 16-1SN | 25 | 1 | 25.0 | 26.4 | 32.5 | 34.1 | 36.6 | 0.8 | 1.5 | 8.8 | 17.5 | 35.0 | 300 | 0.91 |
| 20-1SN | 31.5 | 1-1/4 | 31.4 | 33.0 | 39.3 | 41.7 | 44.8 | 1.0 | 2.0 | 6.3 | 13.0 | 25.0 | 420 | 1.30 |
| 24-1SN 32-1SN | 51 | 1-1/2 2 | 37.7 50.4 | 39.3 52.0 | 45.6 58.7 | 48.0 61.7 | 52.1 65.5 | 1.3 1.3 | 2.5 2.5 | 5.0 4.0 | 10.0 8.0 | 20.0 16.0 | 630 | 1.70 2.00 |
| 03-2SN | 5 | 3/16 | 4.6 | 5.4 | 10.6 | 11.6 | 14.1 | 0.8 | 1.5 | 41.5 | 83.0 | 166.0 | 90 | 0.32 |
| 04-2SN | 6 | 1/4 | 6.1 | 7.0 | 12.1 | 13.3 | 15.7 | 0.8 | 1.5 | 40.0 | 80.0 | 160.0 | 100 | 0.36 |
| 05-2SN | 8 | 5/16 | 7.7 | 8.5 | 13.7 | 14.9 | 17.3 | 0.8 | 1.5 | 35.0 | 70.0 | 140.0 | 115 | 0.45 |
| 06-2SN | 10 | 3/8 | 9.3 | 10.1 | 16.1 | 17.3 | 19.7 | 0.8 | 1.5 | 33.0 | 66.0 | 132.0 | 130 | 0.54 |
| 08-2SN | 12.5 | 1/2 | 12.3 | 13.5 | 19.0 | 20.6 | 23.0 | 0.8 | 1.5 | 27.5 | 55.0 | 110.0 | 180 | 0.65 |
| 10-2SN | 16 | 5/8 | 15.5 | 16.7 | 22.2 | 23.8 | 26.2 | 0.8 | 1.5 | 25.0 | 50.0 | 100.0 | 200 | 0.80 |
| 12-2SN | 19 | 3/4 | 18.6 | 19.8 | 26.2 | 27.8 | 30.1 | 0.8 | 1.5 | 21.5 | 43.0 | 85.0 | 240 | 0.94 |
| 16-2SN | 25 | 25.0 | 26.4 | 34.1 | 35.7 | 38.9 | 0.8 | 1.5 | 16.5 | 32.5 | 65.0 | 300 | 1.35 | |
| 20-2SN | 31.5 | 1-1/4 | 31.4 | 33.0 | 43.3 | 45.7 | 49.5 | 1.0 | 2.0 | 12.5 | 25.0 | 50.0 | 420 | 2.15 |
| 24-2SN | 38 | 1-1/2 | 37.7 | 39.3 | 49.6 | 52.0 | 55.9 | 1.3 | 2.5 | 9.0 | 18.0 | 36.0 | 500 | 2.65 |
| 32-2SN | 51 | 2 | 50.4 | 52.0 | 62.3 | 64.7 | 68.6 | 1.3 | 2.5 | 8.0 | 16.0 | 32.0 | 630 | 3.42 |

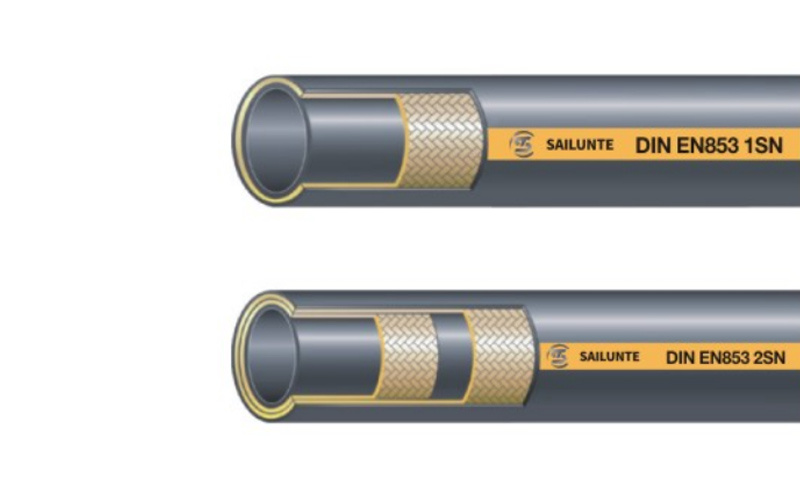

Steel wire braided rubber hose
Application:For delivery of hydraulic or water-based liquids.
Feature:Manufactured from premium oil-resistant and anti-aging synthetic rubber with a smooth-finish reinforcement. The hose is produced in conformity with DIN EN 853 1SN/2SN and SAE J517 100R1AT/100R2AT. Working temperature range: –40 °C to +100 °C (–40 °F to +212 °F).
