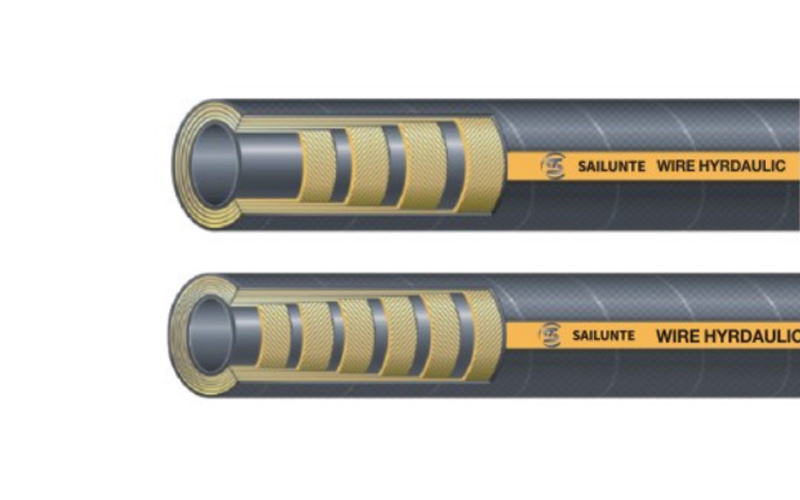

Steel wire wound rubber hose for mining

Application:For conveying water, mineral oil or water-based hydraulic fluids in the hydraulic systems of coal-mining and construction machinery. Operating temperature range: –40 °C to +100 °C (–40 °F to +212 °F).
Feature:Manufactured from oil- and weather-resistant specialty rubber with copper-plated steel wire reinforcement and a black fabric outer surface. Hose complies with MT/T 98-2006.
Get a Quote

Description

  TYPE Metric System Specifications Inch Specifications Hose inner diameter I.D Outer diameter of reinforcement layer W.D Tube outside diameter O.D  Max.W.P  p.p  Min.B.P  Min.B.R  W.T
SIZE SIZE  Min  Max  Min  Max  Min  Max
MM IN in mm mm mm mm mm Mpa  Mpa  Mpa mm kg/m
 1302 13 1/2 12.7 13.5 18.8 20.4 23.0 25.0 33 42  100  210 0.81
 1602 16 5/8 15.7 16.6 22.2 23.8 26.5 28.5 33 42  100  260  1.02
 1902 19 3/4 18.7 19.8 26.2 27.8 30.0 32.0 28 35  84 280 1.20
 2202 22 7/8 21.7 22.8 29.2 30.8 33.5 36.5 24 30  72 320 1.31
 2502 25 1 24.7 25.8 32.2 33.8 36.5 39.5   21 28  64  360  1.50
 3202 32 1-1/4 31.6 32.6 40.2 41.8 44.0 47.0  18 23  56  460 1.81
 3802 38 1-1/2 37.7 38.8 47.0 48.6 50.5 53.5  15 23  46  560 2.02
 4502 45 1-3/4 44.7 45.8 54.0 55.6 58.5 61.5  13 20  39  640 2.20
 5102 51 2 50.5 52.0 59.6 61.2 64.0 67.0  13 20  39  720 2.31
 0604 06 1/4 6.2 6.9 13.6 15.2 18.0 20.0 100 130  250 130 0.65
 0804 08 5/16 7.7 8.5 15.6 17.2 20.0 22.0  85 110.5  210  150 0.85
 1004 10 5/8 9.7 10.5 18.2 19.8 22.0 24.0  70 105  210  180 1.00
 1304 13 1/2 12.7 13.5 21.4 23.0 25.5 27.5  57 86  172  210  1.14
 1604 16 5/8 15.7 16.6 25.2 26.8 29.0 31.0  53 80  160  260  1.54
 1904 19 3/4 18.7 19.8 29.2 30.8 32.5 35.5  46 69  140 280 1.92
 2204 22 7/8 21.7 22.8 32.2 33.8 36.5 39.5  41 62  124 320 2.15
 2504 25 1 24.7 25.8 35.2 36.8 39.5 42.5  35 53  112  360  2.21
 3204 32 1-1/4 31.6 32.6 43.2 44.8 47.5 50.5  32 48  84  460 3.10
 3804 38 1-1/2 37.7 38.8 49.8 51.8 54.5 57.5  25 38  75  560 3.42
 4504 45 1-3/4 44.7 45.8 56.8 58.8 61.5 64.5  21 32  64  640 4.03
 5104 51 2 50.5 52.0 62.8 64.8 67.5 70.5  21 32  64  720 4.74
 0606 06 1/4 6.2 6.9 15.3 17.0 19.7 21.8 125 162.5  310 150 0.92
 0806 08 5/16 7.7 8.5 17.2 19.2 22.0 24.0  100 130  300  160 1.19
 1006 10 5/8 9.7 10.5 20.0 22.0 24.0 26.0  80 120  240  180 1.40
 1306 13 1/2 12.7 13.5 23.8 25.8 28.5 30.5  72 108  216  210  1.74
 1606 16 5/8 15.7 16.6 28.0 30.0 31.5 34.5  70 105  204  260 2.10
 1906 19 3/4 18.7 19.8 32.0 34.0 35.5 38.5  60 90  180 280 2.23
 2206 22 7/8 21.7 22.8 35.0 37.0 39.5 42.5  53 80  160  320 2.80
 2506 25 1 24.7 25.8 38.0 40.0 42.5 45.5  50 75  152  360 3.18
 3206 32 1-1/4 31.6 32.6 46.0 48.0 50.5 53.5  41 62  124  460 3.80
 3806 38 1-7 12 37.7 38.8 52.8 54.8 57.5 60.5  36 54  108  560 4.39
 4506 45 3/4 44.7 45.8 59.8 61.8 645 675  32 48  96  640 5.02
 5106 51 2 50.5 52.0 66.2 68.2 71.5 74.0  32 48  96  720 5.98
